Disc stack centrifuge
Supplier: FUYI Machinery
Share to:
Details

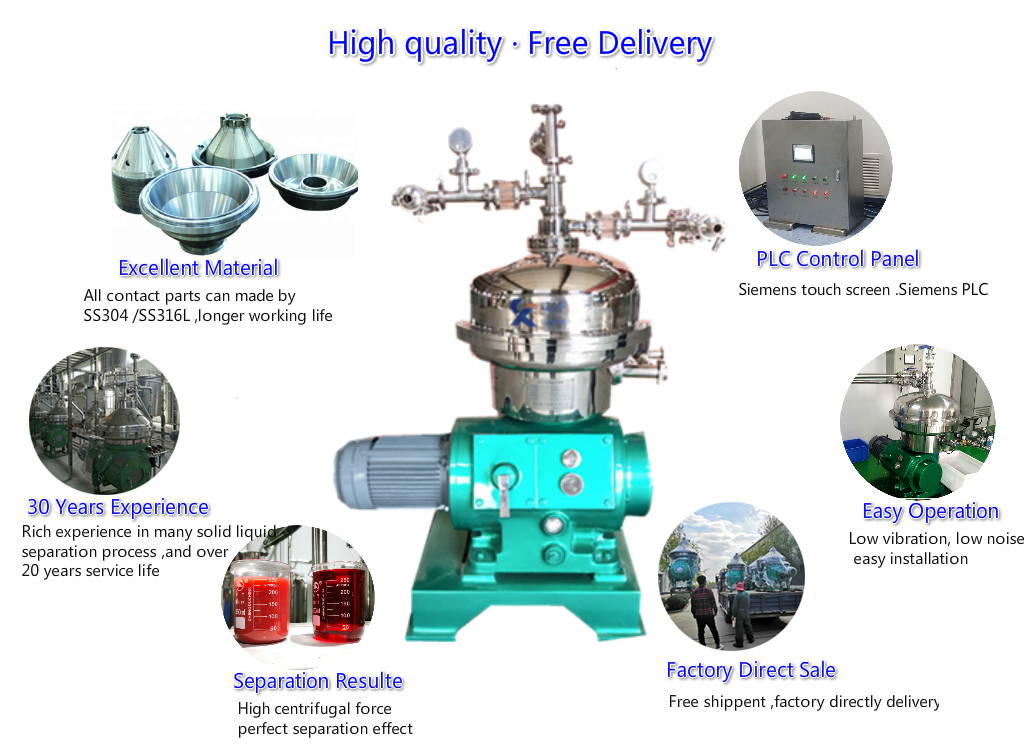

Disc stack centrifuge
FUYI Disc centrifuge is a centrifugal separator which can separate solid matter from two kinds of different density liquids on a continuous basis and also to separate two liquids simultaneously. By reducing process cycle time and labor requirements, these separators offer high cost efficiency in liquid clarification and reclamation, solid-liquid separation and its classification, recovery and thickening of solids and in other such processes.
Disc stack centrifuges are high-speed centrifuges for the mechanical separation and clarification of mixtures comprising solids and liquids. These machines can be used in a wide range of applications. Due to their special design, disk stack centrifuges work at a higher rotation speed than other centrifuges such as decanters. As a result, the centrifugal acceleration (g-force) generated by a disk stack centrifuge is significantly more powerful than in decanter centrifuges. Moreover, the disks included provide a large clarifying area. Thus, it is possible to separate ultra fine solid particles from a liquid and to separate liquid mixtures in an efficient way.
Technical parameters
|
Model
|
Bowl Speed(rpm)
|
Capacity L/h
|
Power
|
Width
|
Front to Back
|
Height
|
|
300
|
7300
|
500-1500
|
4
|
850
|
1050
|
1200
|
|
400
|
7070
|
1000-2500
|
7.5
|
1130
|
1500
|
1500
|
|
500
|
6600
|
2000-5000
|
15
|
1500
|
1780
|
1900
|
|
550
|
6000
|
5000-8000
|
22
|
1850
|
1800
|
1900
|
